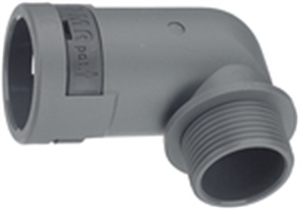

Picture of Connector 90' Elbow M50 50mm Grey Ip66

Connector 90' Elbow M50 50mm Grey Ip66

 Product Information

90° Elbow

A selection of high shock resistant, push-in fittings designed for use with PMAFLEX conduits, manufactured from modified Polyamides. They have a locking feature which prevents unauthorised removal by the need to use a screwdriver to reopen, these fittings can be used in a wide range of applications where it is important that the cable protection system offers a high grade of sealing and safety.





Supplied with locknuts and gripping clip.

PMAFLEX Nylon & Polyruethane (IP68) PMAFLEX Polyamide & Polyurethane (IP68/66)

Features for all conduit types:



IP68/66 (dependent upon Fittings)
Halogen & Cadmium free
None flame propagating
Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents
PCL:
 -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved
PUE:
 -60°C to +50°C operating temperature, excellent reversed bending properties
VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec
PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J
VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)
PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL



Current rating is 0.00. Total votes 0.



Connector 90' Elbow M50 50mm Grey Ip66

Connector 90' Elbow M50 50mm Grey Ip66
SKU: SVWD-M508GT
Manufacturer: PMA
Bookmark and Share

Now: £245.86 excl vat
