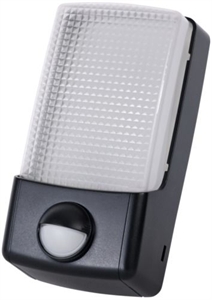

LED88PIR 5W LED Energy Saver PIR Bulkhead Light

This exciting new bulkhead light is compact and robust. The powerful LED energy saving light can reduce running costs to just 10%. With IP55 weatherproof rating and aesthetic modern styling this is a must for outdoor use where energy saving and security are paramount.

  • Powerful 5W LED Energy Saving PIR Bulkhead Light – equivalent to 70W (210 Lumens) incandescent lighting with only 10% of the running costs.
  • Compact and robust design.
  • Prismatic lens diffuser.
  • Light on times adjustment 5 seconds to 10 minutes.
  • Optional mode settings – Dusk to Dawn and Test mode.
  • 140° PIR detector with up to 7m detection range.
  • Lux (light level) adjustment – Day to Night (2 to 200 Lux – permanently ‘ON’ when at max.).
  • Operating temperature -20°C to +40°C.
  • Ideal for both indoor and outdoor installations.
  • IP55 weatherproof rating.
  • Easy installation.

Operating Voltage

230V AC

Lamp Type


Maximum Light Load (W)


Weatherproof Rating


Detection Range (Max) Metres


Angle of Detection

140° PIR detector (pan only) within adjustable 180° range

Light On Time After last detection (Adjustable)

5 Seconds (Min), 10 Minutes (Max)

Permanent ON Facility


Adjustable Light Level (LUX) Control

2 to 200 Lux

Conforms to Directives

73/23/EEC, 89/336/EEC

Overall Dimensions (mm)

Height 205, Width 108, Depth 73


Current rating is 0.00. Total votes 0.


Bulkhead Pir Led 5w Energy Saver
Manufacturer: Timeguard
Bookmark and Share

Now: £59.99 excl vat
