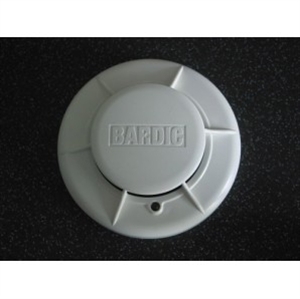

Optical Smoke Detector

• Operating Voltage Range: 14-28Vdc (Nominal 24Vdc).
• Maximum Alarm Current: 45µA @24 Vdc.
• Temperature Range: -30c to +70c.
• Humidity: 5 to 95% Relative Humidity (non condensing).
• Height: 32.5mm (plus 9.5mm for standard bases).
• Diameter: 102mm.
• Weight: 75g (plus 45g for standard base).
• Max Wire Gauge for Terminals: 1.5mm2.
• Colour: Approximate RAL9016.
• Material: ABS.
• Standards: EN54-7.
• Approvals: LPCB Approved.
