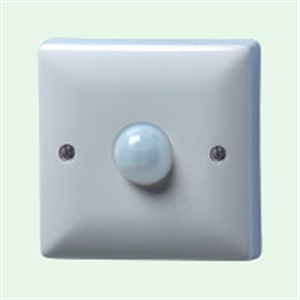

Wall or ceiling mounted PIR occupancy switch.
The WACE PIR is suitable for either wall or ceiling mounting. It fits either into a plaster depth (16mm) wall box or onto a ceiling mounted square pattress box. It requires a neutral wire.
Applications
Suitable for stairwells, corridors, toilet lobbies, etc.
Version incorporating override off button, enabling lights to be held off during video presentations etc, available by request.
Specification
| Detection Zone: |
120° |
| Time lag range: |
10 seconds to 40 minutes in 9 steps |
| Photocell range: |
100 to 1000 lux, and inactive |
| Loading: |
Up to 6 amps (1500W) of resistive, transformer or fluorescent lighting loads, up to 2 amps (500W) of low energy lighting loads (LED lamps and compact fluorescent) or up to 1 amp (250W) of fans or most metal halide lamps |
| Dimensions: |
86 x 86 x 22mm. Wall box depth 16mm |
