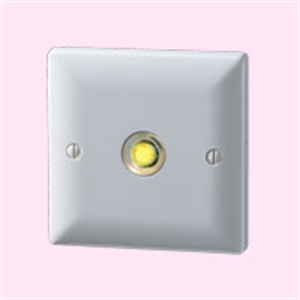

Plated time lag switches - 3 wire versions
Illuminated push button for easy location in the dark. These 3 wire versions are economical switches which need neutral wires.
Button remains illuminated in both the ON state and the OFF state.
| Time lag: |
Adjustable from 2 to 20 minutes |
| Loading: |
Up to 6 amps (1500W) of resistive, fluorescent or transformer lighting loads, or up to 1 amp (250W) of fans. No minimum load |
| Dimensions: |
86 x 86 x 12mm. Wall box depth 16mm |
Wiring Diagrams
| Single TLSW A20 ILM |
 |
| Several TLSW A20 ILM wired in parallel |
 |
| TLSW A20 ILM with slave push buttons |
 |
