Grid Time Lag Switches
Time lag is adjustable from 1 to 120 minutes.
Suitable for MK Grid Plus.
DANLERS manufacture versions to suit each of the following formats, MK Grid Plus, Crabtree grid and Eurodata plates. They may be placed in any position on the appropriate grid or plate.
These Grid time lag switches cannot be operated by slave push buttons

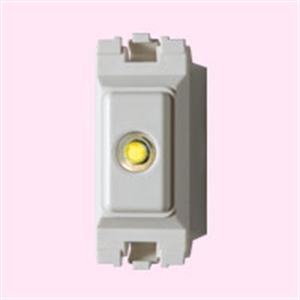

The GRTLA MK ILM has an illuminated push button for easy location in the dark.
Button remains illuminated in both
Specification
| Time Lag: |
1 to 120 minutes (adjustable) |
| Maximum Load: |
6 amps (1500W) of resistive, fluorescent or transformer lighting loads, or up to 1 amp (250W) of fans |
| Minimum Load: |
2W of resistive.
A load capacitor (CAPLOAD) can be supplied to augment small loads such as contactors, low energy lamps, LEDs and emergency light fittings
|
| Dimensions: |
59 x 24 x 34mm. Minimum wall box depth 35mm |
