Functions and Special features

Slim buttons give an easy press action. Pressing the button dims or brightens the light to any level. A quick press switches off. Another press returns the lamp to its previous brightness.

All versions are suitable for dimming most mains dimmable LED lamps and fittings and mains halogen lamps.

Quiet operation.

The soft start feature prolongs the lamp life.

Some LED lamps may require a small resistive load (order code RESLOADE) to enable smooth dimming.

Multi-way switching and dimming can be achieved from any position only by using the matching DANLERS slave switches.

These grid dimmer modules fit any position on the appropriate grid or plate system.

2-wire and intermediate wiring can be used with DANLERS Quiet grid dimmers, however all 2-way and intermediate switches must be changed to DANLERS Slave switches SSGS__ or SS_SL.

Specification

Min. and Max. wattage:

Resistive, mains halogen or dimmable electronic transformer load:	40 – 400W
Dimmable wire-wound or toroidal transformer inductive loads:	Not suitable
LED lamps and fittings*:	10 – 200W*

*Due to the characteristics and ever changing design of different lamp manufacturers LED drivers DANLERS cannot specify a universal accurate maximum / minimum load. However, use of DANLERS RESLOAD can help to eliminate lamp instability in many LED lamps and fittings.

For loading of Grid dimmers on multi-gang plates the following limits also apply:

2 gang plates:	Maximum for total plate – 630W
3 or 4 gang plates:	Maximum for total plate – 1000W
6, 8, 9 or 12 gang plates:	Maximum per row – 1000W
18 or 24 gang plates:	Maximum per row – 1200W

Dimensions:

59 x 24 x 34mm, minimum wall box depth of 35mm

Current rating is 0.00. Total votes 0.

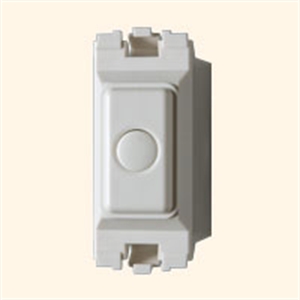

DQDGD MK400

Dimmer Grid Quiet 400w

SKU: DQDGD MK400

Manufacturer: Danlers

Now: £45.41 excl vat
